Mineral Mixing Tank

Short Description:

The LZDT type laboratory stirring tank is suitable for stirring before the flotation of various pulp, ensuring thorough mixing of reagents and pulp. It can also be used for mechanical stirring in industries such as chemical engineering and environmental protection. To adapt to the scope of mixing drum, concentration is not more than 45% (by weight), solid particle size less than 1 mm.Before starting work, rotate the main shaft pulley to check if it operates smoothly, and inspect whether the sealing devices of all fasteners are reliable. Only after confirming that there are no faults can the machine be started. Stop the slurry mine before parking. Grease each moving part regularly.


Product Detail

Product Tags

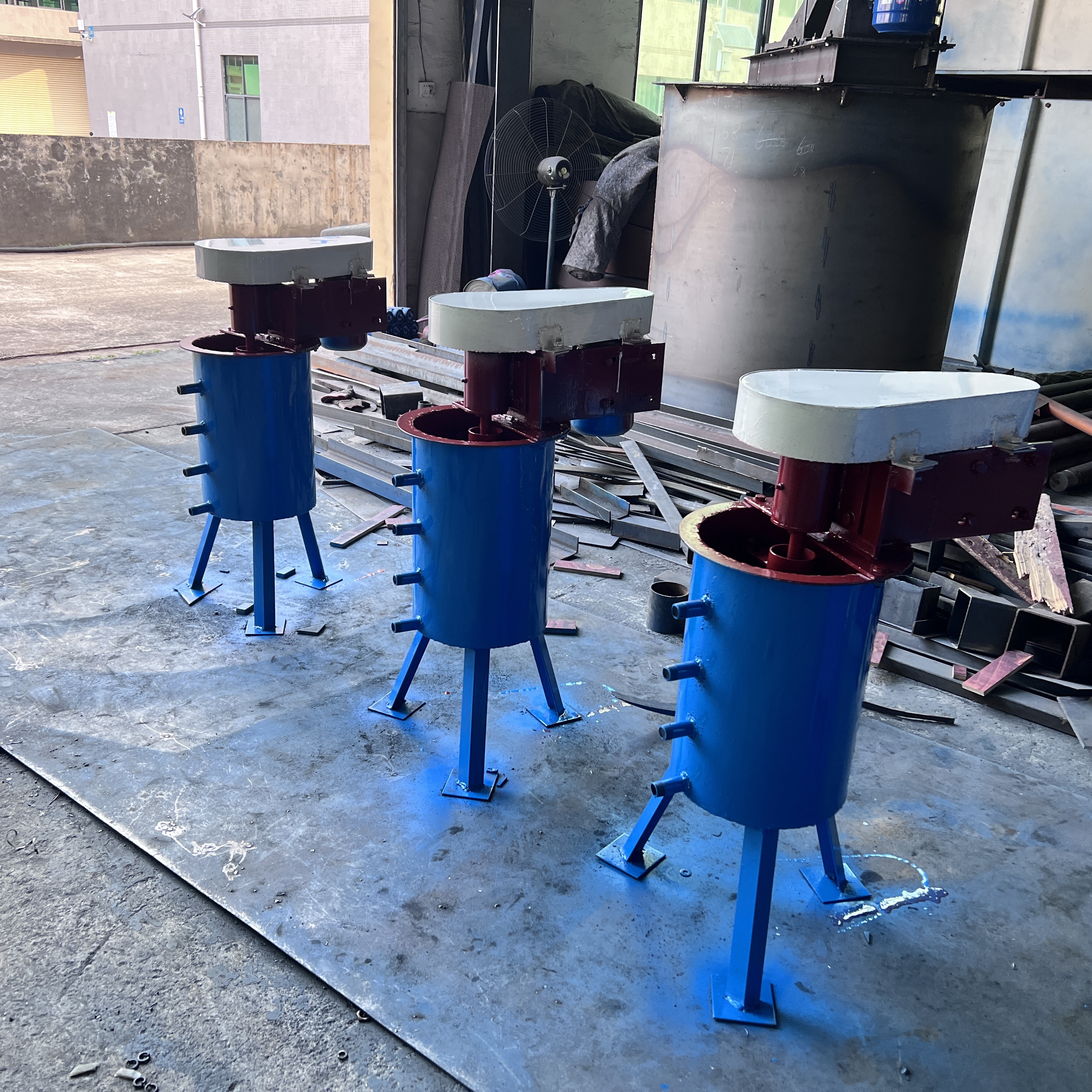

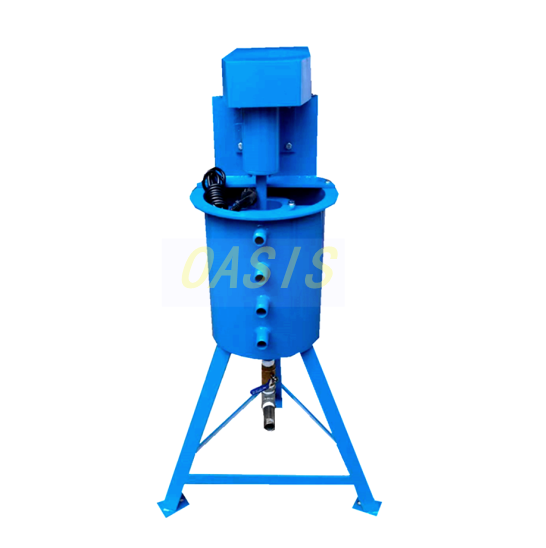

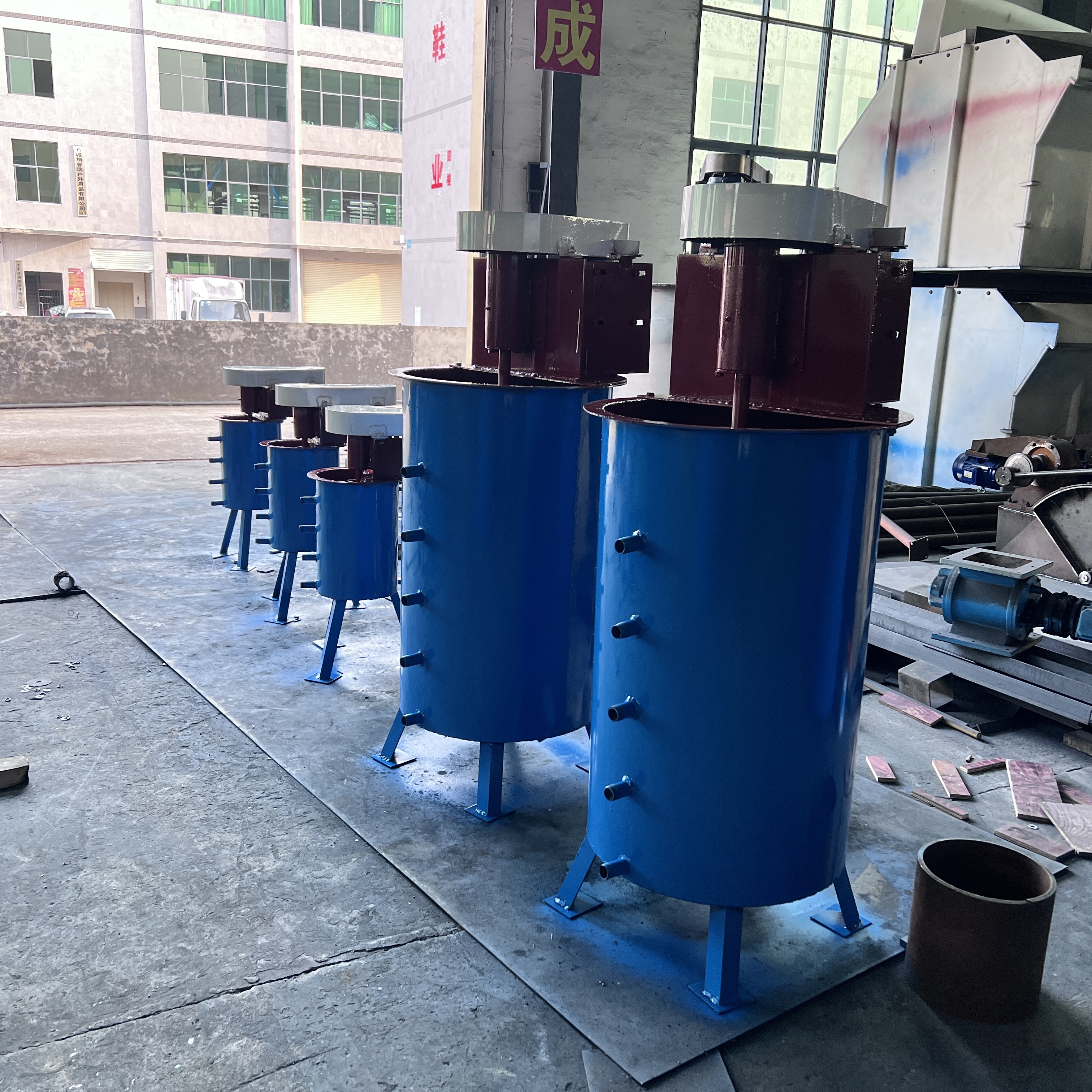

Product Pictures

Product Parameters

Model

Volum

Size of tank

Impeller diameter

Impeller speed

Power

Size

Weight



L

mm

mm

r/min

W

mm

kg

LZDT-5

5

Φ190×190

Φ48

1750

250

304×505×633

40

LZDT-15

15

Φ246×348

Φ64 Φ116

1400

550

480×329×910

45

LZDT-20

20

Φ270×350

 Φ116

1400

750

500×330×920

53

LZDT-30

30

Φ320×400

Φ64 Φ128

1400

750

560×388×960

63

LZDT-50

50

Φ396×448

Φ64 Φ128

1400

750

660×388×960

73

LZDT-100

100

Φ500×510

Φ150

1000

1100

750×570×1160

140

LZDT-130

130

Φ500×660

Φ150

1000

1100

720×720×1670

150

LZDT-160

160

Φ500×810

Φ150

600

1100

930×930×2016

186

LZDT-170

170

Φ600×600

Φ250

700

1100

850×760×1520

190

LZDT-200

200

Φ500×1000

Φ180

600

1100

900×900×1800



200
