High Voltage Electrostatic Separator
 |
 |
 |
Basic Parameters and Size
|
Drum diameter x length |
Φ250×200mm |
|
Drum Speed |
0～280r/min(Step less) |
|
Corona electrode: filament diameter x number |
0.2mm×1～5 pcs |
|
Static electrode: diameter x number |
Φ30mm×1 pcs |
|
Electrode adjustment: radial movement |
60mm |
Features
1. Beautiful appearance, silo, hopper are all made of stainless steel, no rust, no paste, suitable for a variety of materials sorting.
2. Single-phase power supply is adopted to reduce the requirements for power supply, good safety and easy to use.
3. Adopt imported programmable controller, frequency converter and so on, so that the electrical performance of the whole machine is excellent.

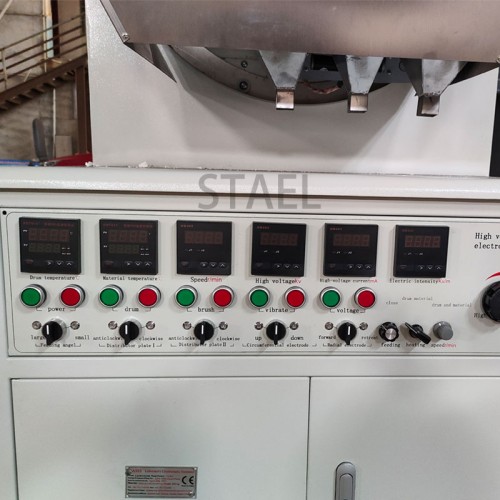

4. Adopt digital display instrument, all kinds of measurement data display eye-catching and accurate.
Mechanical structure overview

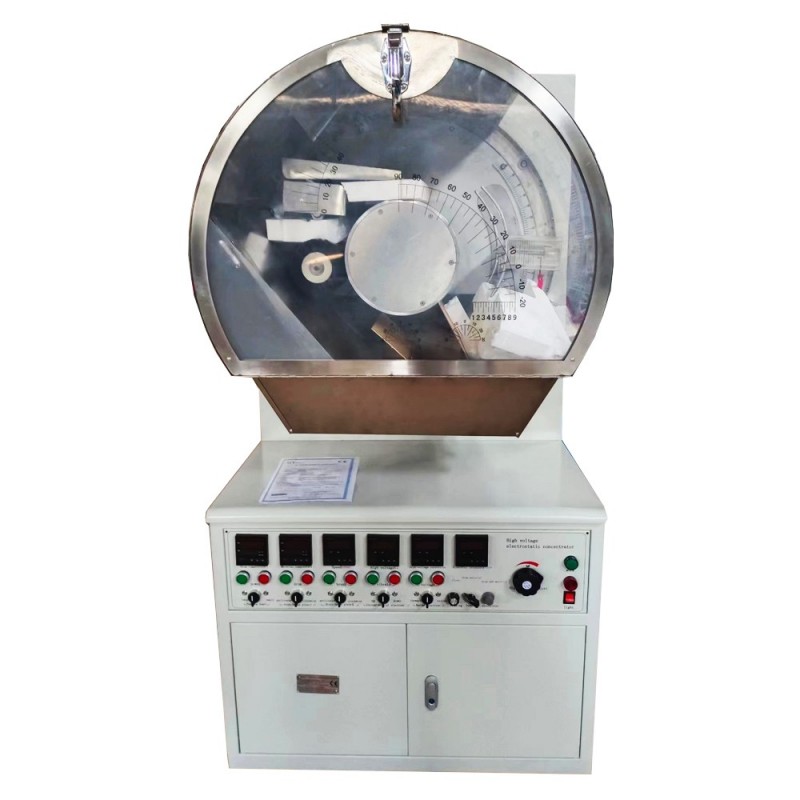

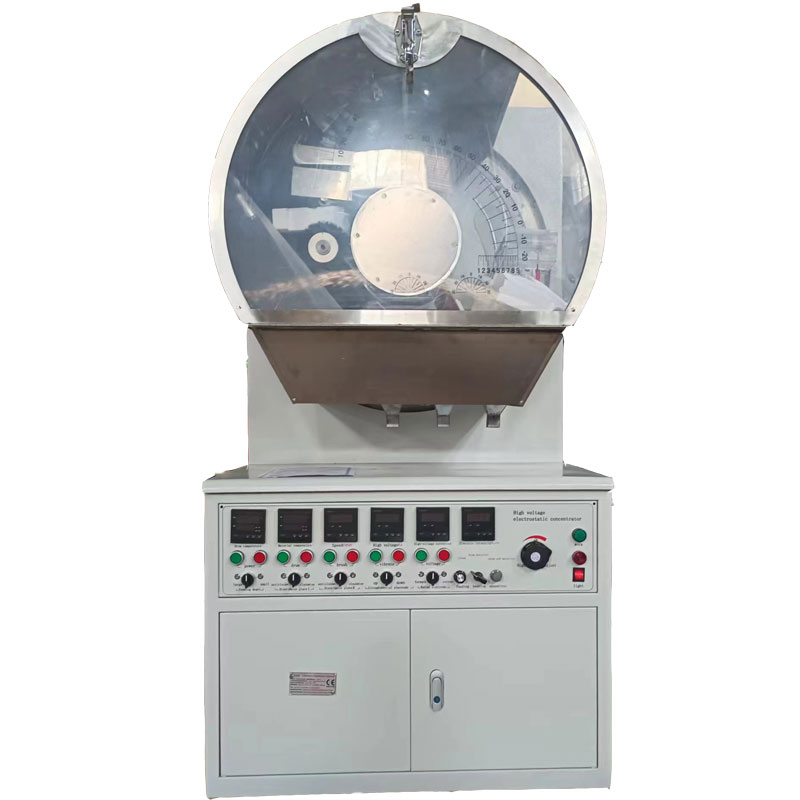

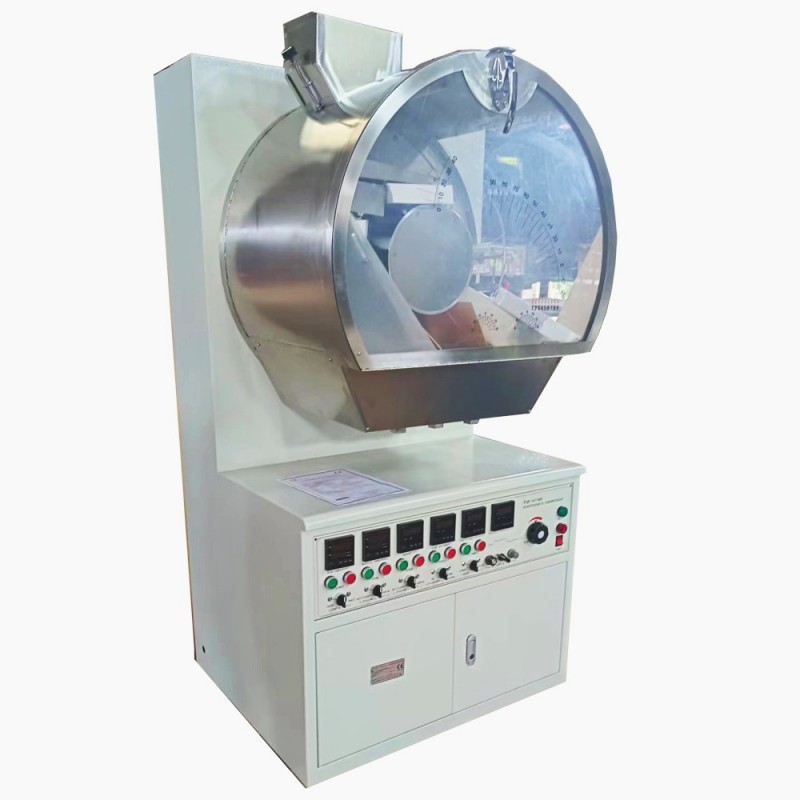

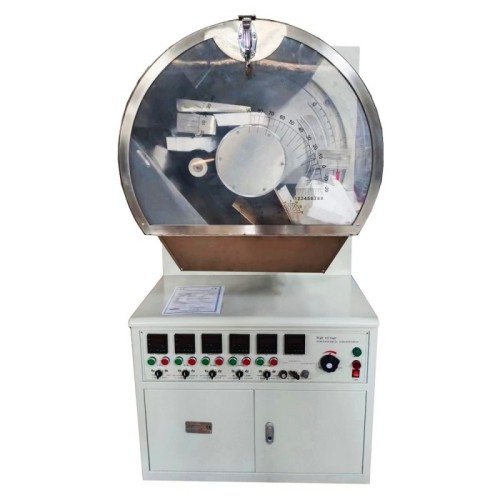

According to the special needs of experimental research work, the design of the machine considered to ensure the sorting effect on the basis of meeting the requirements of various experimental research, sorting process, many parameters should be able to be adjusted and compared, it is best to observe the operation in the whole process of work, but also more convenient, intuitive, The mark scale is easy to correct and can clearly see the whole process of sorting, in addition to convenient operation, beautiful appearance, generous, so the support of the drum adopts the cantilever shaft structure, plus a plexiglass safety guard, high voltage power supply and electrical part in the lower part of the machine, according to the user needs, the overall equipment design for the split structure, the appearance diagram is as follows: (Physical picture of electric separator).
